Mission Darkness BlockBox Lab XL

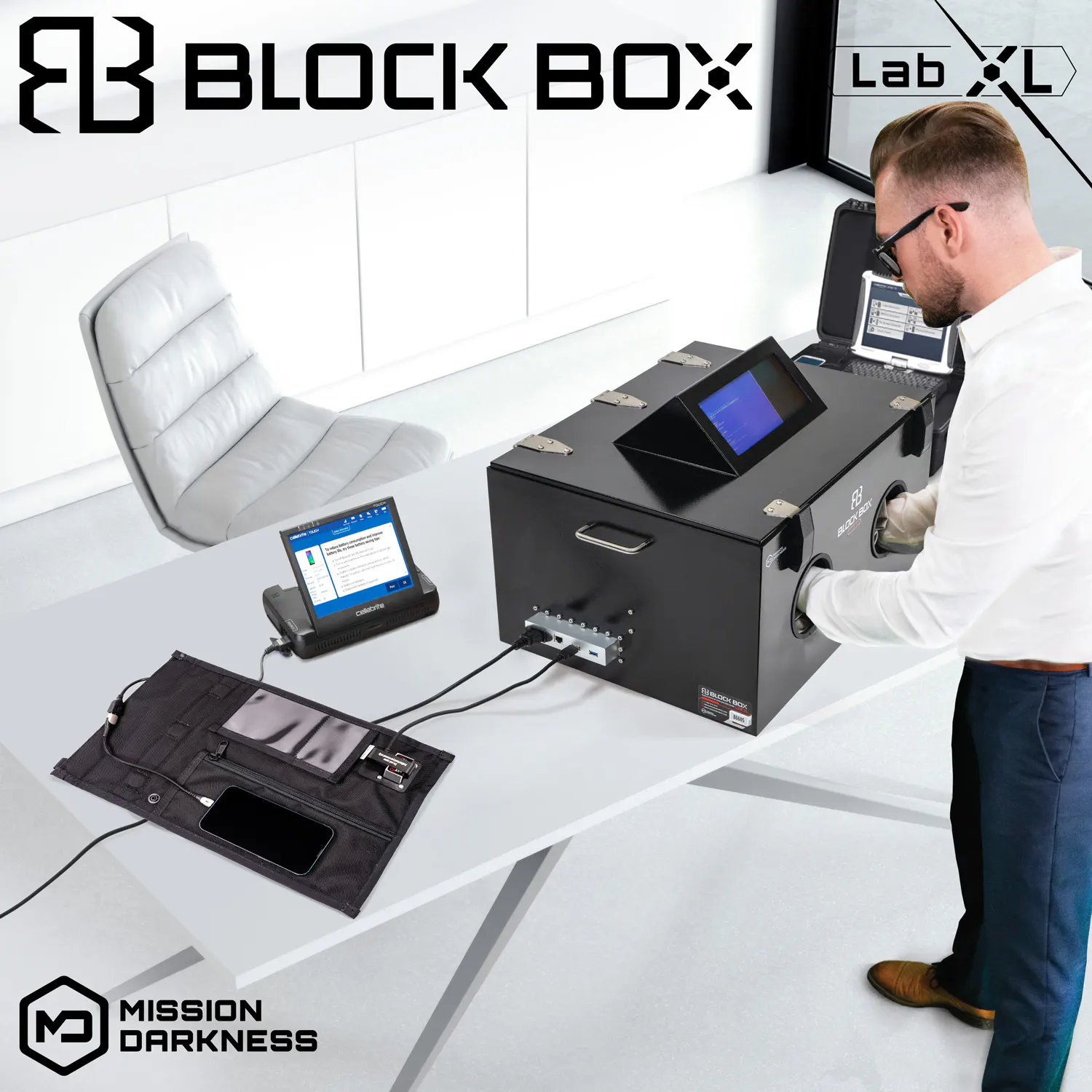

The BlockBox Lab XL is Mission Darkness’s primary forensic analysis enclosure – a large durable RF-shielded workspace designed for investigators who need to extract data from seized devices while keeping the device charged. 150% larger than the original BlockBox Lab, specifically designed so that investigators can work with bulkier extraction tools, multiple devices simultaneously, and large Faraday bags without constraint.

The BlockBox Lab XL has been widely used in the digital forensics market for over a decade, trusted by government agencies, law enforcement, military, and forensic professionals worldwide. Preferred over competitor equivalents for its comprehensive features, spacious interior, and included accessories, it serves as a one-stop solution for forensic investigations – allowing seamless device operation, multiple device connections, and ample tool storage inside a secure RF-shielded environment. Mission Darkness™ continuously enhance their  products to stay ahead of evolving threats and reduce operational pain points, ensuring forensic professionals have the most effective tools to secure, analyze, and extract critical data with confidence.

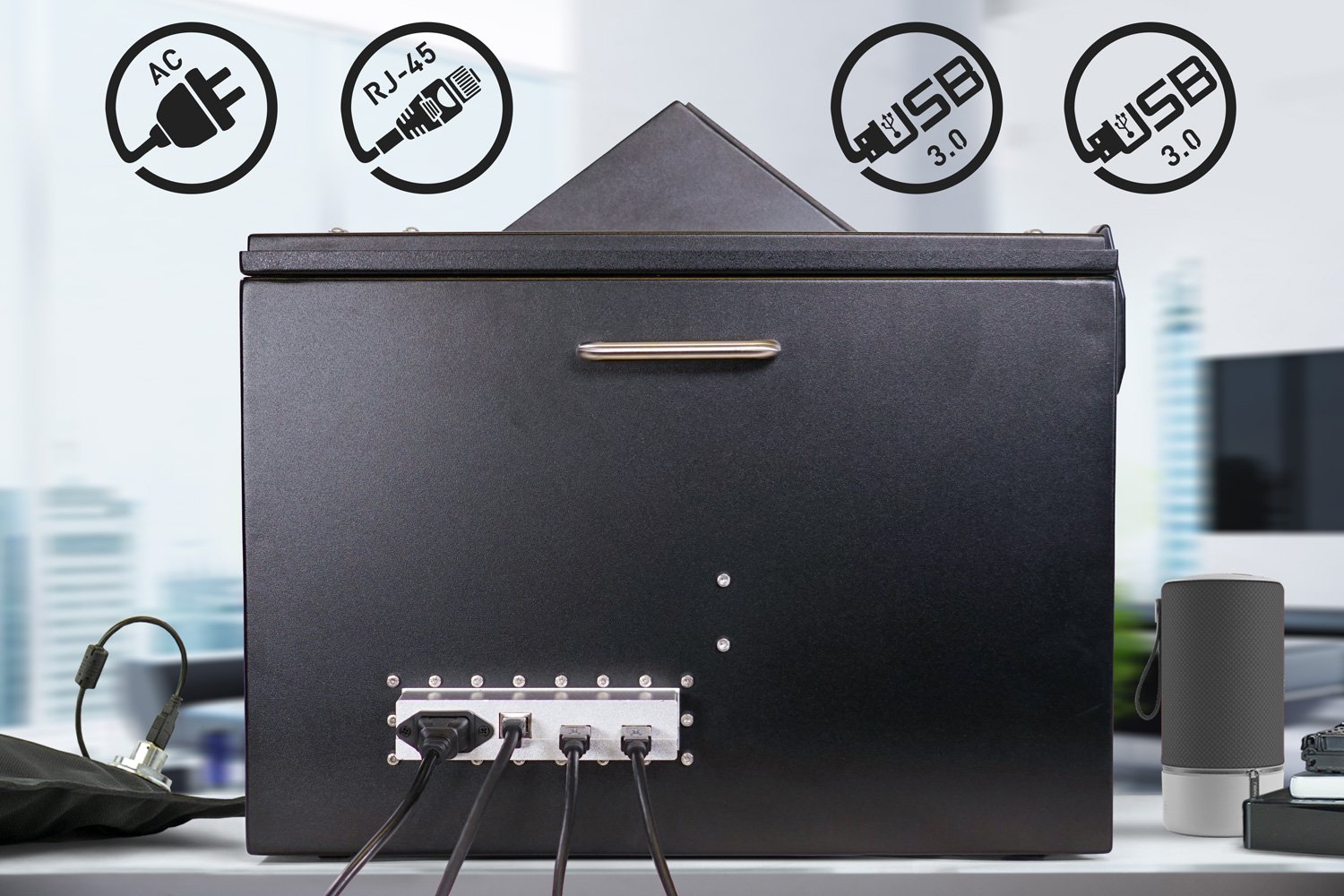

Connectivity and power:  A dual-sided shielded filter passes data and power through the enclosure wall without introducing signal leakage. The external filter face includes one RJ45 ethernet port, two USB ports, and one AC power outlet. Internally, a shielded power strip with four universal power outlets and four USB ports keeps connected devices charged indefinitely – eliminating the battery lockout problem that can end investigations prematurely. The RJ45 port allows investigators to connect a device inside the chamber to an external extraction tool (such as Cellebrite, GrayKey, XRY, Oxygen Forensics, BlackBag) without the device ever leaving the shielded environment.

Transfer chamber use:  The BlockBox Lab XL also functions as a shielded transfer chamber. Devices arriving in NeoLok Faraday bags can be transferred to different bags, such as the Charge & Shield, entirely within the shielded environment.

Construction:

• The frame is made of aircraft-grade aluminium lined internally with RF-absorbent foam
• The viewing window uses Mission Darkness’s patented Gen 2 RF-FilterVu transparent material  (25% clearer than the original design) and illuminated by dual internal LED arrays
• All seams and penetrations are RF-sealed

Shielding Certification:

• Independently certified by Keystone Laboratories to IEEE 299-2006 shielding effectiveness standards – the same benchmark used for SCIF construction evaluation
• Click here for the  Blockbox Lab testing report
• Blocks all RF signals including WiFi (2.4 to 5GHz), Bluetooth, Cellular (including 5G), GPS, RFID, NFC, and radio signals from low MHz to 40GHz
• Blocks carrier, hardware, and OS agnostics
• Blocks device hacking, tracking, remote wiping and remote detonation

Key Features & Specifications:

• External Dimensions: ~ 24”L x 18”W x 16.5”H (60.96cm x 45.72cm x 41.91cm)
• Internal Usage Dimensions: ~ 22.75”L x 17”W x 12.5”H (57.79cm x 43.18cm x 31.75cm)
• Light-weight: although designed for lab use, the light weight of the BlockBox Lab XL and strong side handles allow it to be transported to different locations
• Extra-Large Interior Space: Fits multiple cell phones, tablets, laptops, and similar-sized devices
• Gen 4 Dual-Sided Shielded Filter: Equipped with two USB ports, one AC port, and one RJ45 ethernet port; designed for optimal performance in diverse international settings

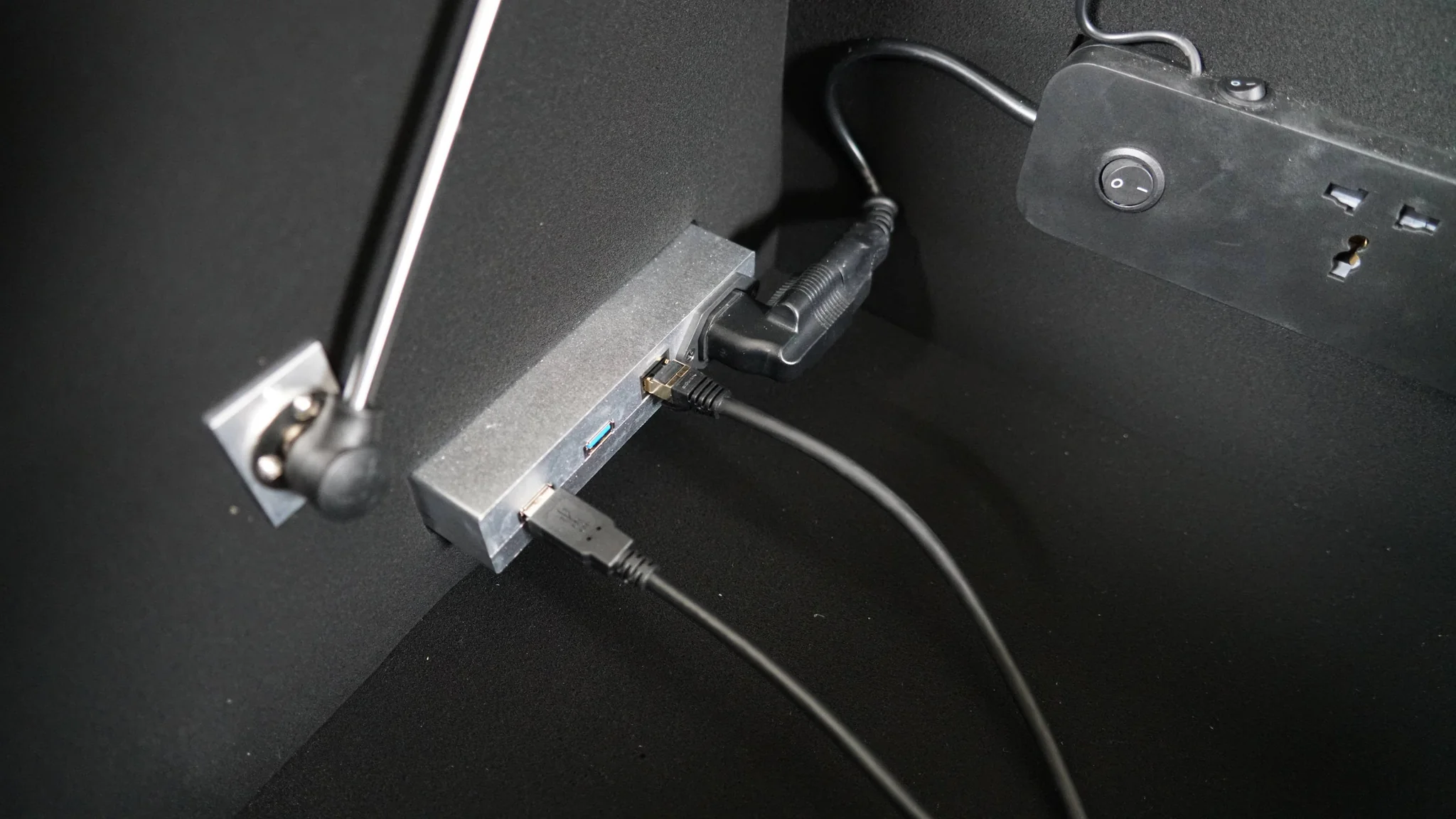

• Power Strip: Powers multiple devices internally, with four universal power outlets and four USB outlets
• High-Speed Data Extraction: Supports fast data transfer and connectivity for efficient analysis
• Indefinite Power Capabilities: Prevents lockout mode and reduces passcode cracking time, maximizing data extraction
• Complete RF Isolation: Blocks WiFi (2.4 & 5GHz), Bluetooth, cell signals including 5G networks, GPS, RFID, NFC, and radio signals – from low MHz to 40GHz

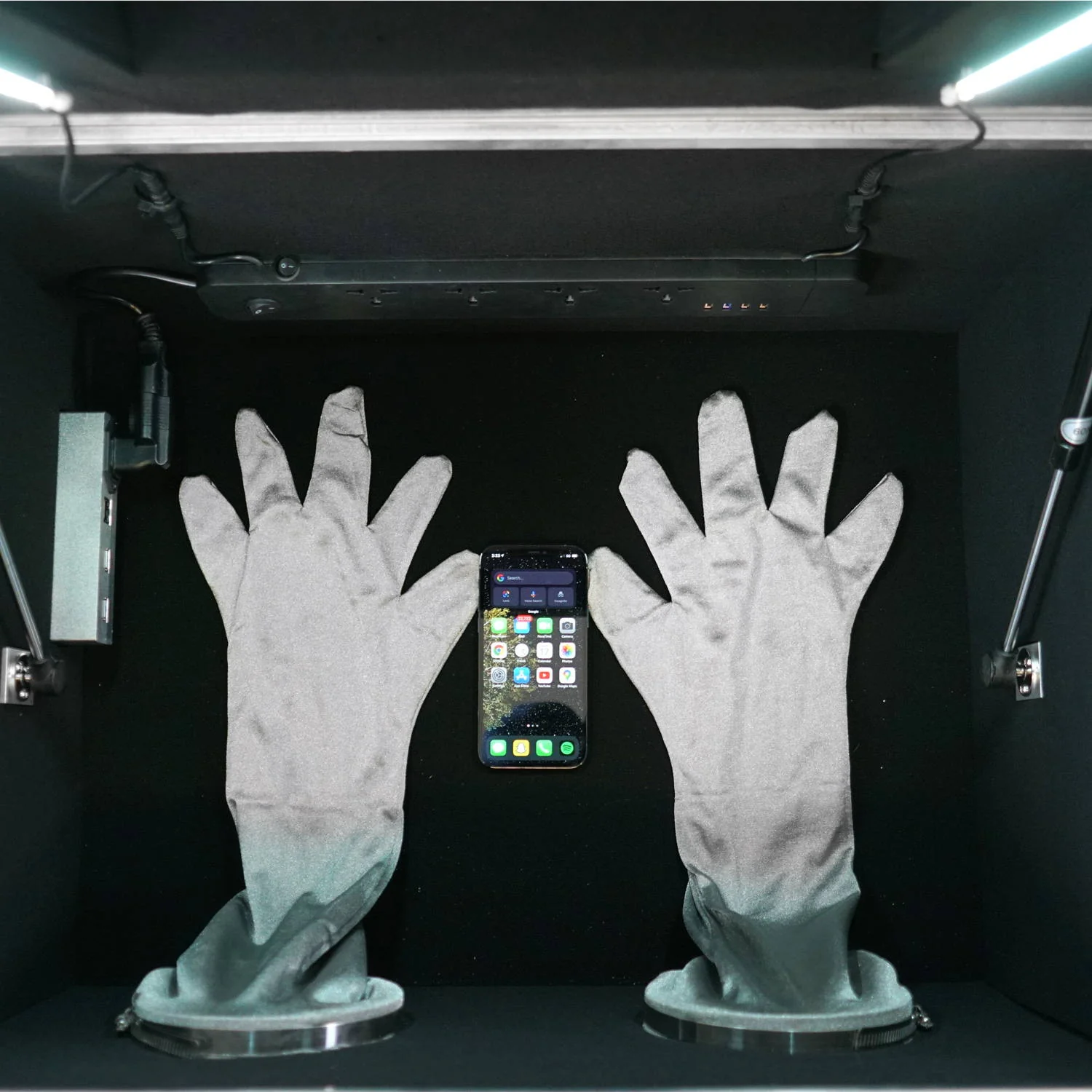

• Built-In Conductive Gloves: Includes gloves for left and right hands-on touch

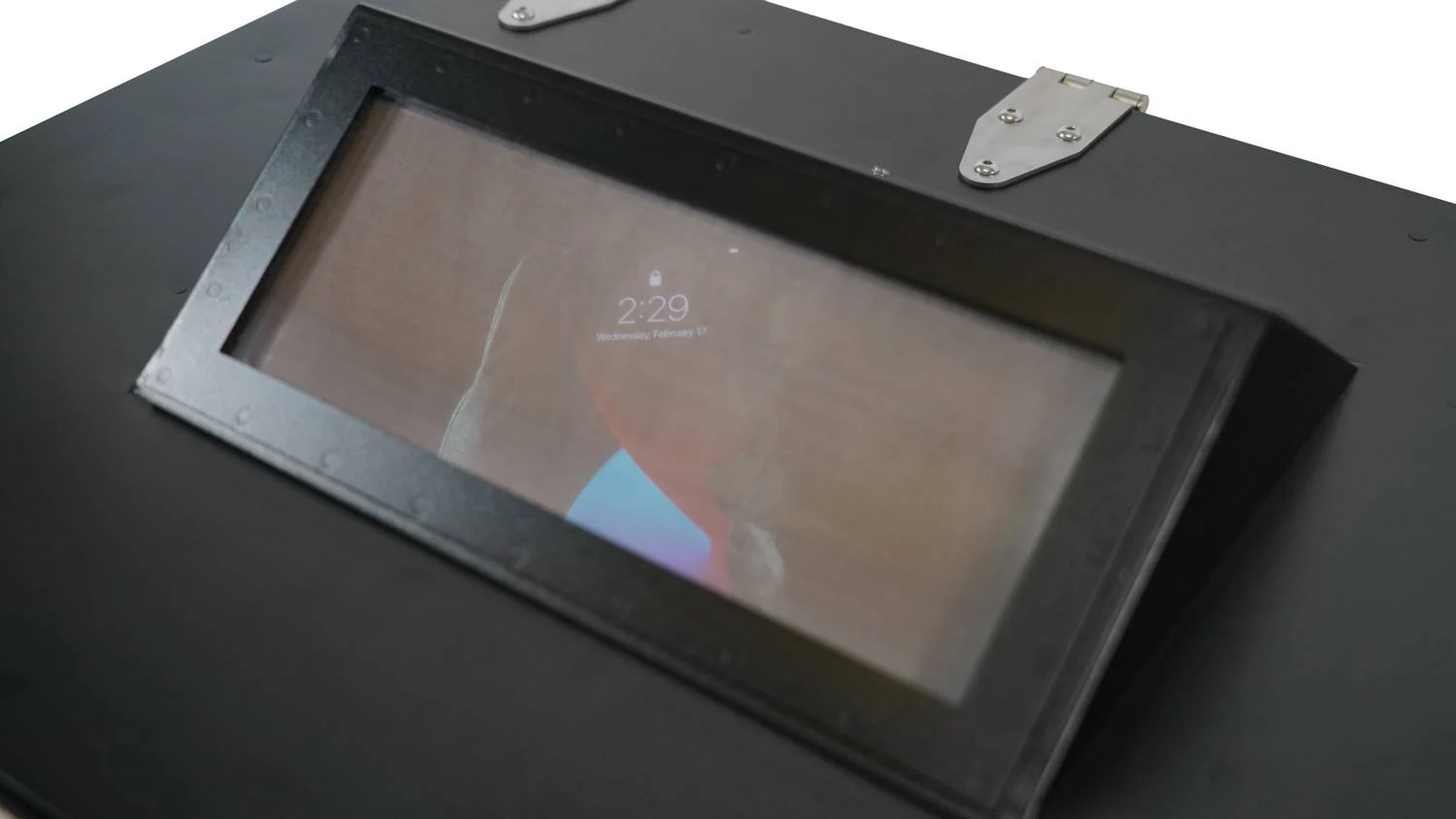

• Patented RF Shielded Window: Gen 2 RF-FilterVu transparent window for device viewing, offering 25% more clarity than the standard size BlockBox Lab window (Pat. US 11,943,907)
• Interior Illumination: Two LED arrays provide ample lighting inside the enclosure
• RF Absorbent Foam Liner: Lines all interior sides to enhance RF shielding
• Durable Construction: Features a robust outer aluminum casting with a black coating
• Comprehensive Charging Cable Kit: UL-certified kit compatible with popular device models
• Optimized Internal Space: Separate clear phone organizer and shelf for better organization and screen visibility

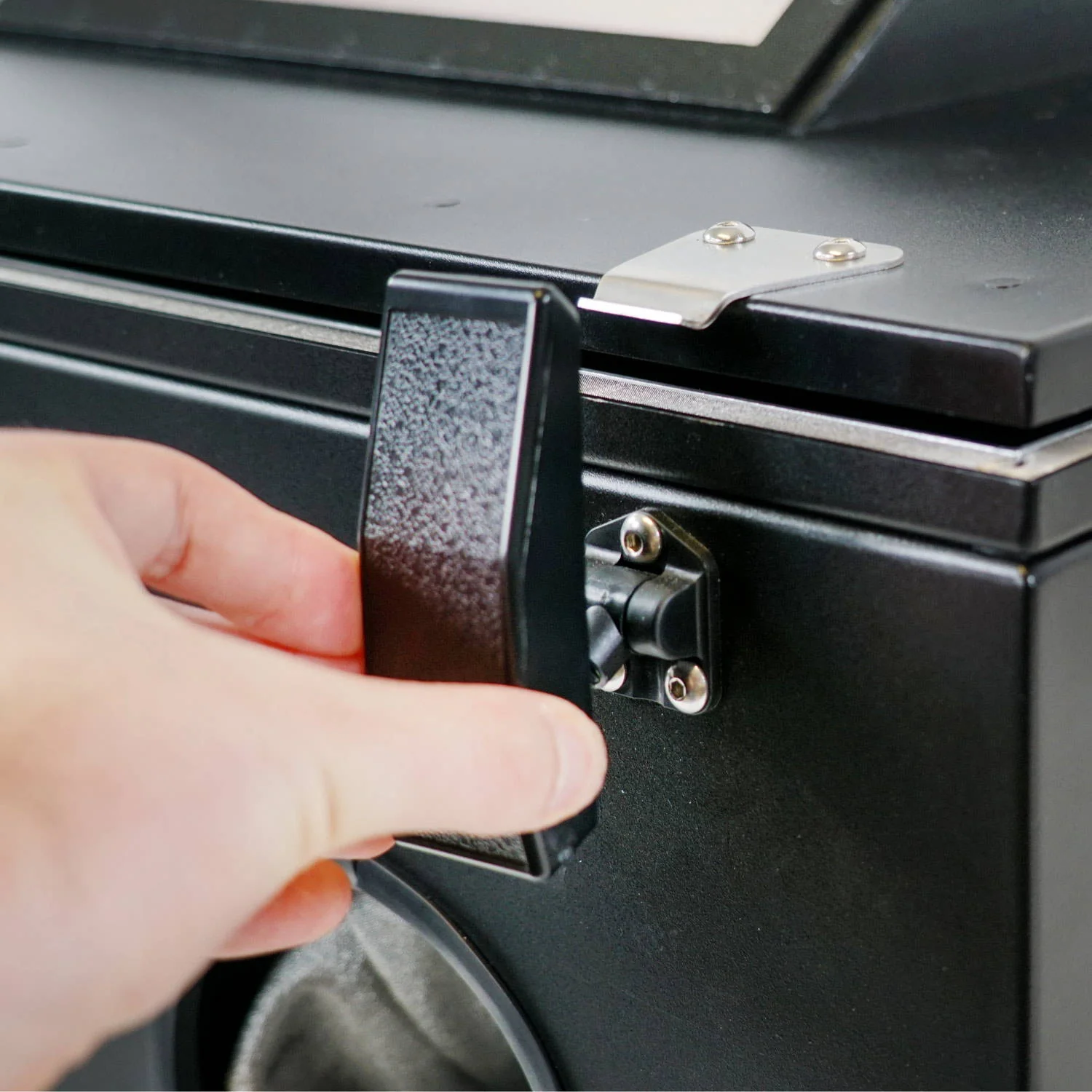

• Secure Closure System: Dual easy release latch system with a piston hinge gas-filled cover strut
• Temperature Range: Operates effectively from +14°F (-10°C) to +122°F (+50°C)
• Easy Transport: Equipped with two metal side handles for convenient carrying
• Warranty and Support: One year product warranty and support included
• Assembled in the USA: Designed and assembled by MOS Equipment

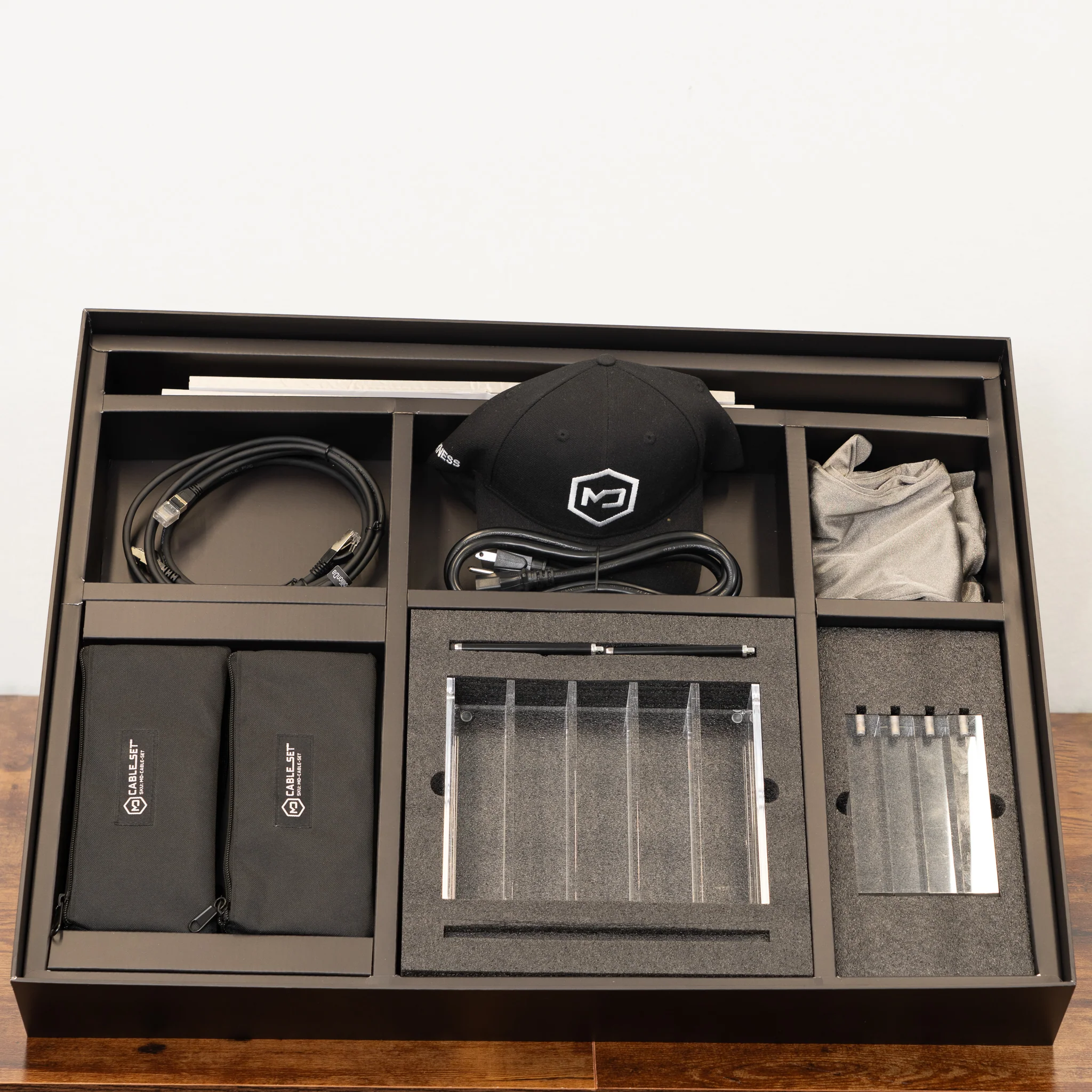

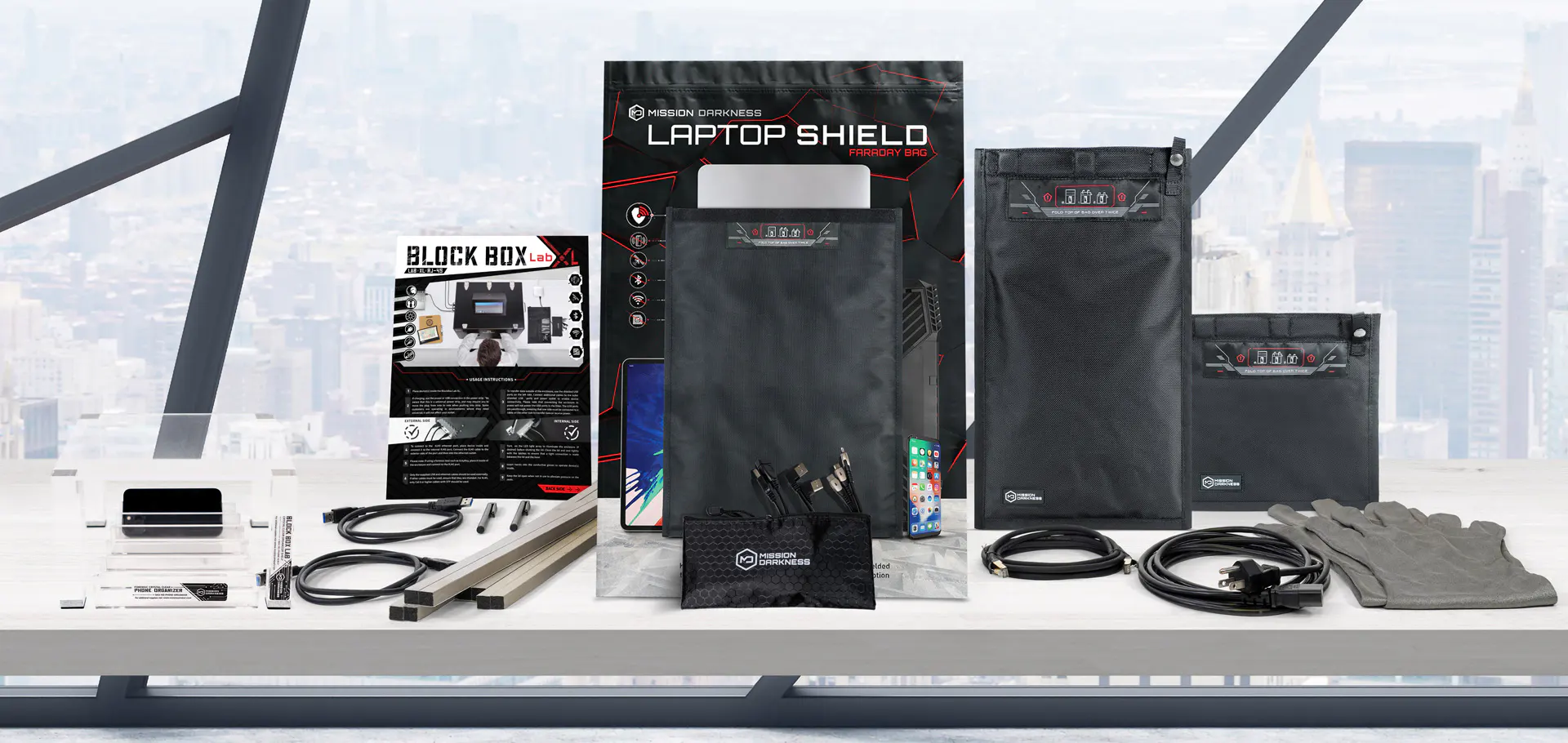

Accessory Kit Included with the BlockBox Lab XL:

• Deluxe accessory box to keep items organized and protected
• Three NeoLok Faraday bags (phone, tablet, and laptop)
• Four USB cable sets for internal connectivity (each set includes a universal angle USB A/M to A/M, lightning to USB, micro USB, USB-C, USB extension, and bulk pack of DataPort Swabs for cleaning device charging ports for reliable power connection)
• Two straight USB A/M to A/M cables
• Two ethernet cables
• AC power cable
• Set of replacement Faraday gloves
• Replacement set of adhesive-backed foam gasket seals
• Crystal clear acrylic phone organizer – holds up to five devices in an upright position
• Crystal clear acrylic organizer shelf
• Two stylus pens
• Webcam cover
• Unique serial number sticker
• Instruction card
• 1 Year Warranty

Variations & Additional Options

• Internal webcam mount connected to external tablet
• Shielded vent and fan
• External camera mount (with or without camera)
• Additional USB, RJ45 ethernet or other filters
• Additional USB cable set
• Video call training session (2 hours)
• Extended warranty

Tips when using the Faraday gloves:

• The Faraday gloves will become defective with extended water contact – do not expose to wet devices
• Items or devices with sharp edges will puncture the gloves and void the shielding capacity of the gloves
• It is not recommended to use the gloves with Faraday bags that use the Velcro closure system, as the Velcro will damage the gloves and compromise their shielding capacity – please use Faraday bags that use the Neolok™ magnetic closure system
• All Faraday fabrics wear out over time and the gloves should be regularly checked to ensure they continue to adequately shield

Videos on the BlockBox Lab XL & Variations:

• The Mission Darkness™ Blockbox Lab XL Demo
• BBL XL BlockBox Lab Comparison Standard vs Tablet Version

Contact us if you have customization requests or particular requirements that are not included in this product configuration.
